CCEC Cummins Industrial Engines
industrial diesel engines produced by Chongqing Cummins Engine Co., Ltd. are widely used in heavy-duty equipment and power systems worldwide. As a joint venture of Cummins Inc., CCEC focuses on manufacturing high-power diesel engines designed for demanding industrial environments.
These engines combine Cummins’ advanced engineering technology with reliable manufacturing standards. As a result, they deliver strong power output, excellent fuel efficiency, and long service life across multiple industrial sectors.
At BLSH Diesel, we supply a full range of CCEC Cummins industrial engines and spare parts. Customers can source complete engines, replacement components, and maintenance parts from a single supplier, which simplifies procurement and ensures compatibility.

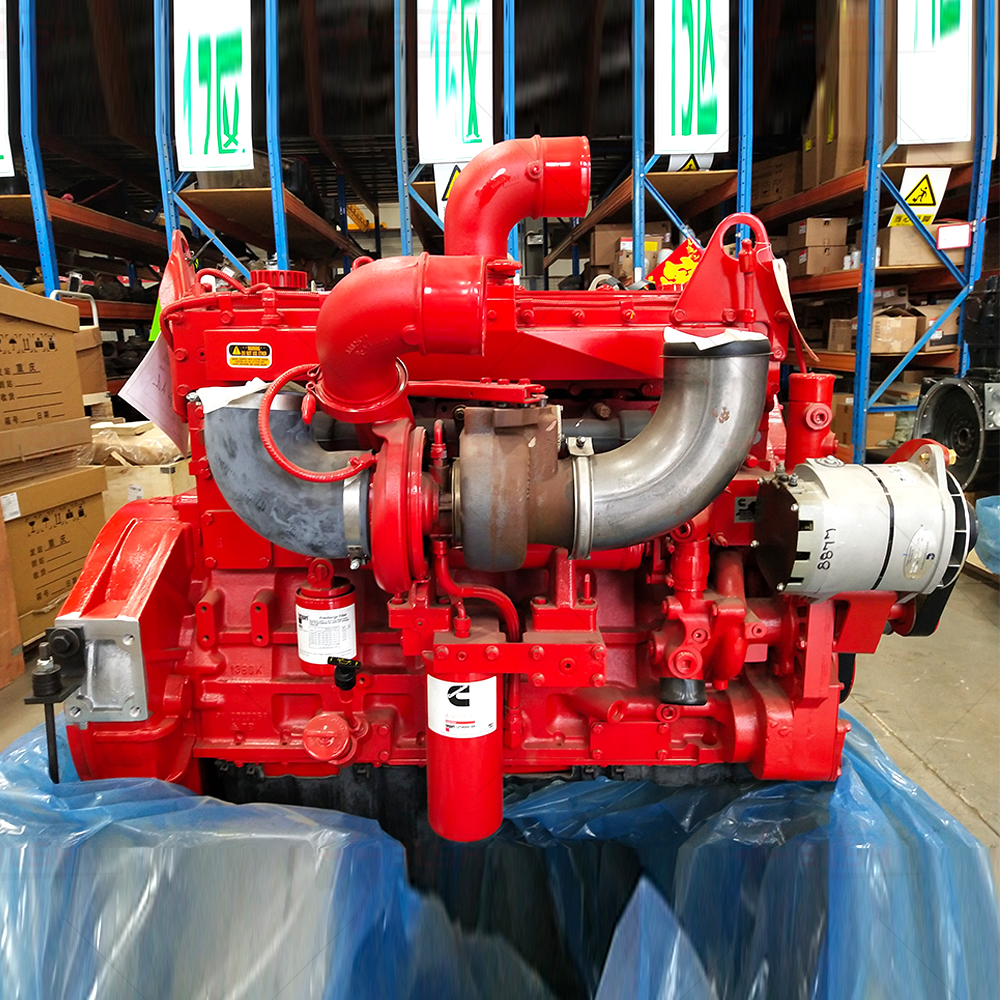

M11
Engine Type: 6Cylinders
Displacement: 11 L
Bore xStrock:125 mm*147 mm
Rated Power: 185 HP to 330 HP
Peak Torque: 788 N.m to 1458 N.m

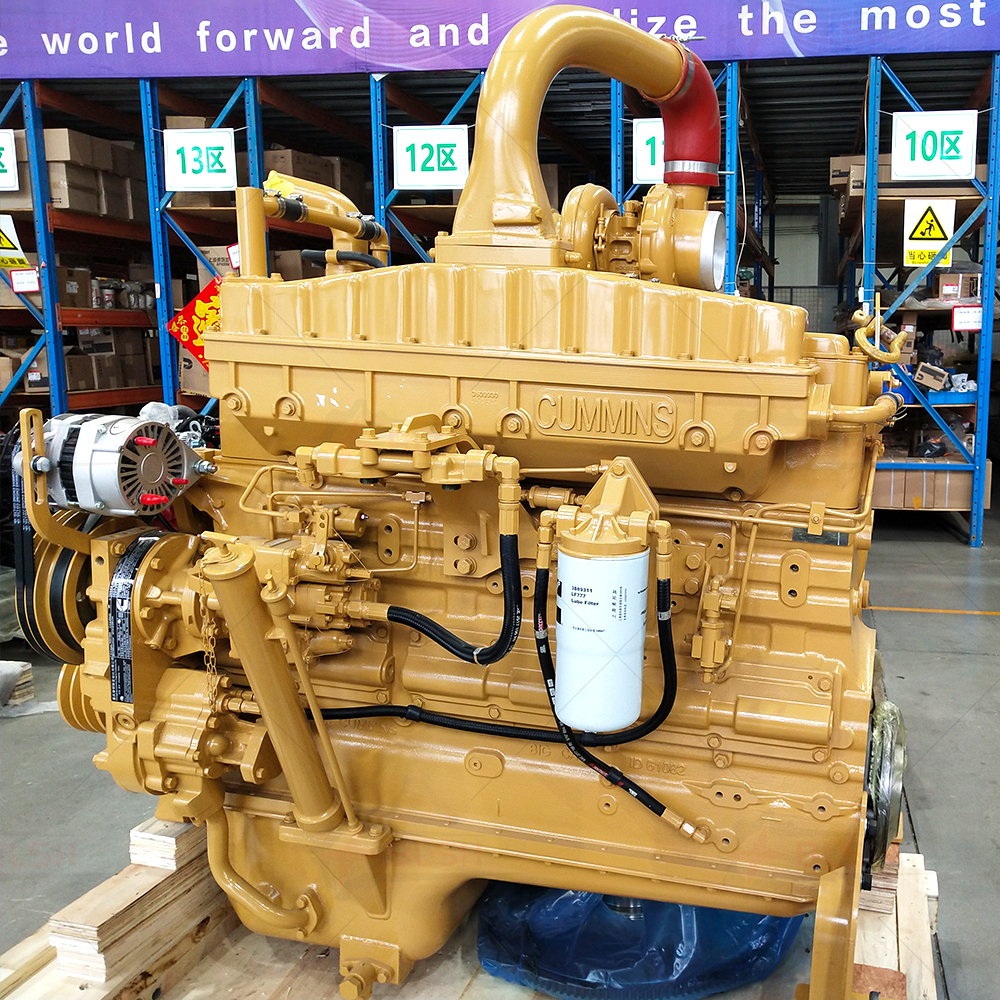

NT855
Engine Type: 6Cylinders
Displacement: 14 L
Bore xStrock:140 mm*152 mm
Rated Power: 250 HP to 450 HP
Peak Torque: 1017 N.m to 1831 N.m
KTA19
Engine Type: 6Cylinders
Displacement: 19 L
Bore x Strock: 159 mm* 159mm
Rated Power: 525 HP to 700 HP
Peak Torque: 1902 N.m to 2319 N.m
KTA38
Engine Type: 12Cylinders Displacement:38 L
Bore xStrock:159mm*159 mm
Rated Power: 780 HP to 1400 HP
Peak Torque: 3089 to 6860 N.m.

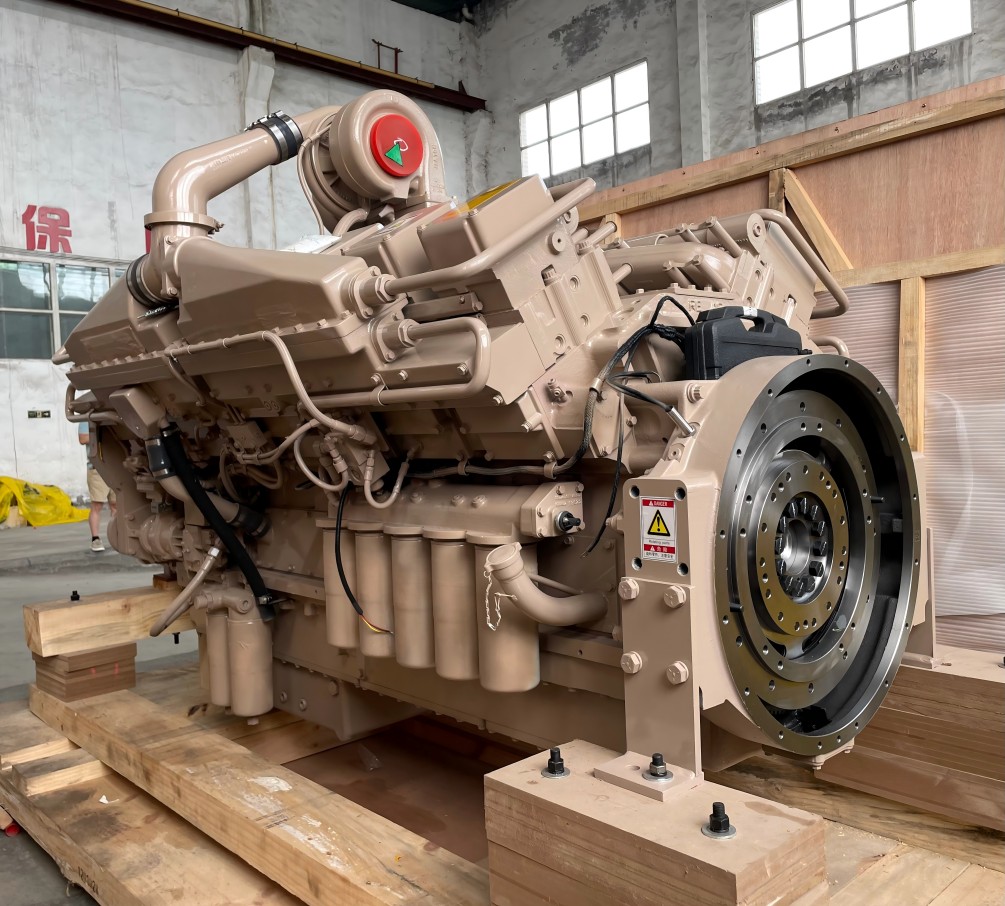

KTA50
Engine Type: 16Cylinders
Displacement:50 L
Bore xStrock:159mm*159 mm
Rated Power: 1600 HP to 2250 HP
Peak Torque: 5071 to 7865 N.m.

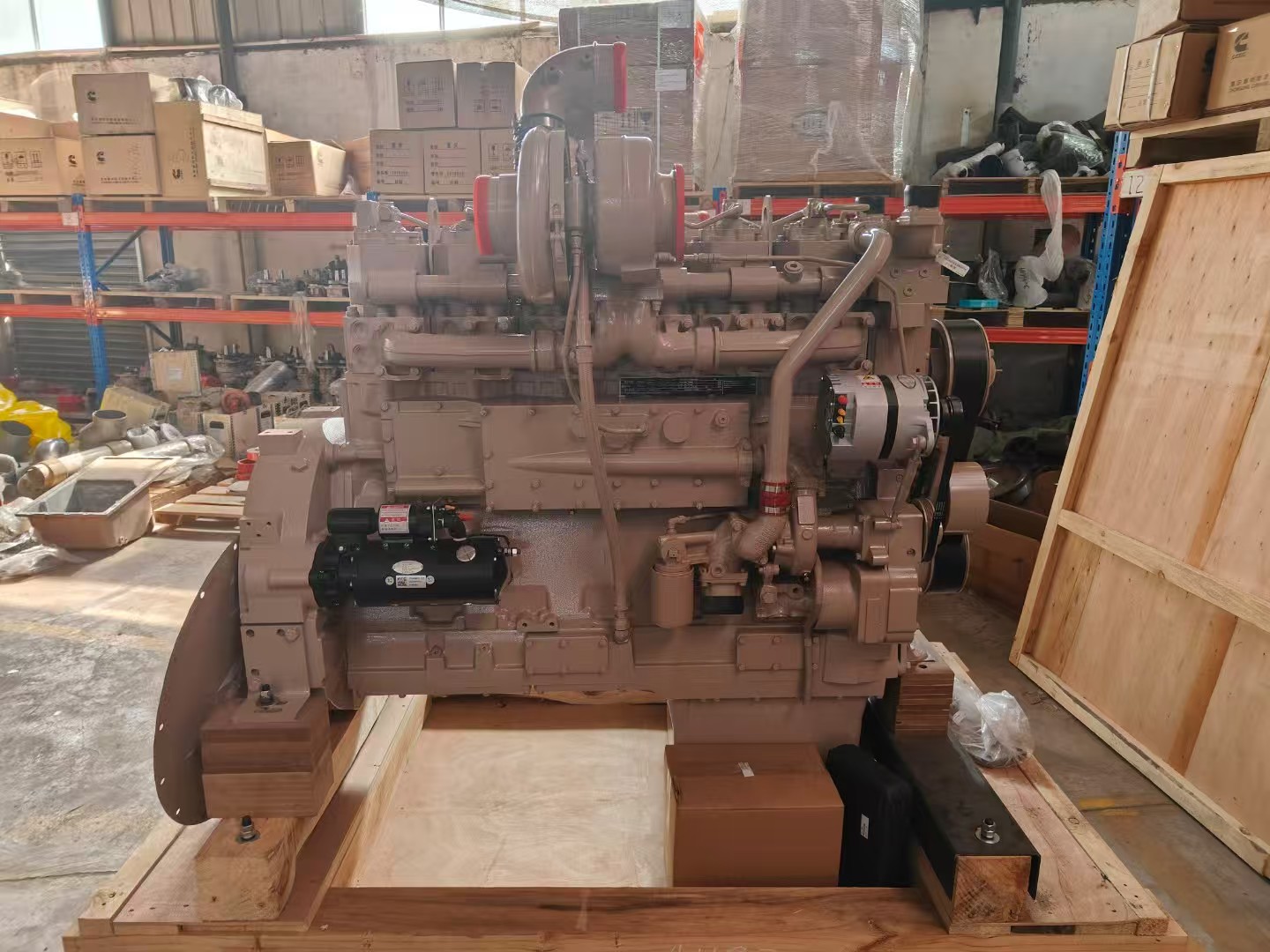

QSK19
Engine Type: 6Cylinders
Displacement:19 L
Bore xStrock:159mm*159 mm
Rated Power: 506 HP to 815 HP
Peak Torque: 2407 to 3084 N.m.
QSK23
Engine Type: 6Cylinders
Displacement:23 L
Bore xStrock:140mm*152 mm
Rated Power: 760 HP 801 HP
Peak Torque: 3468 – 3776 N.m

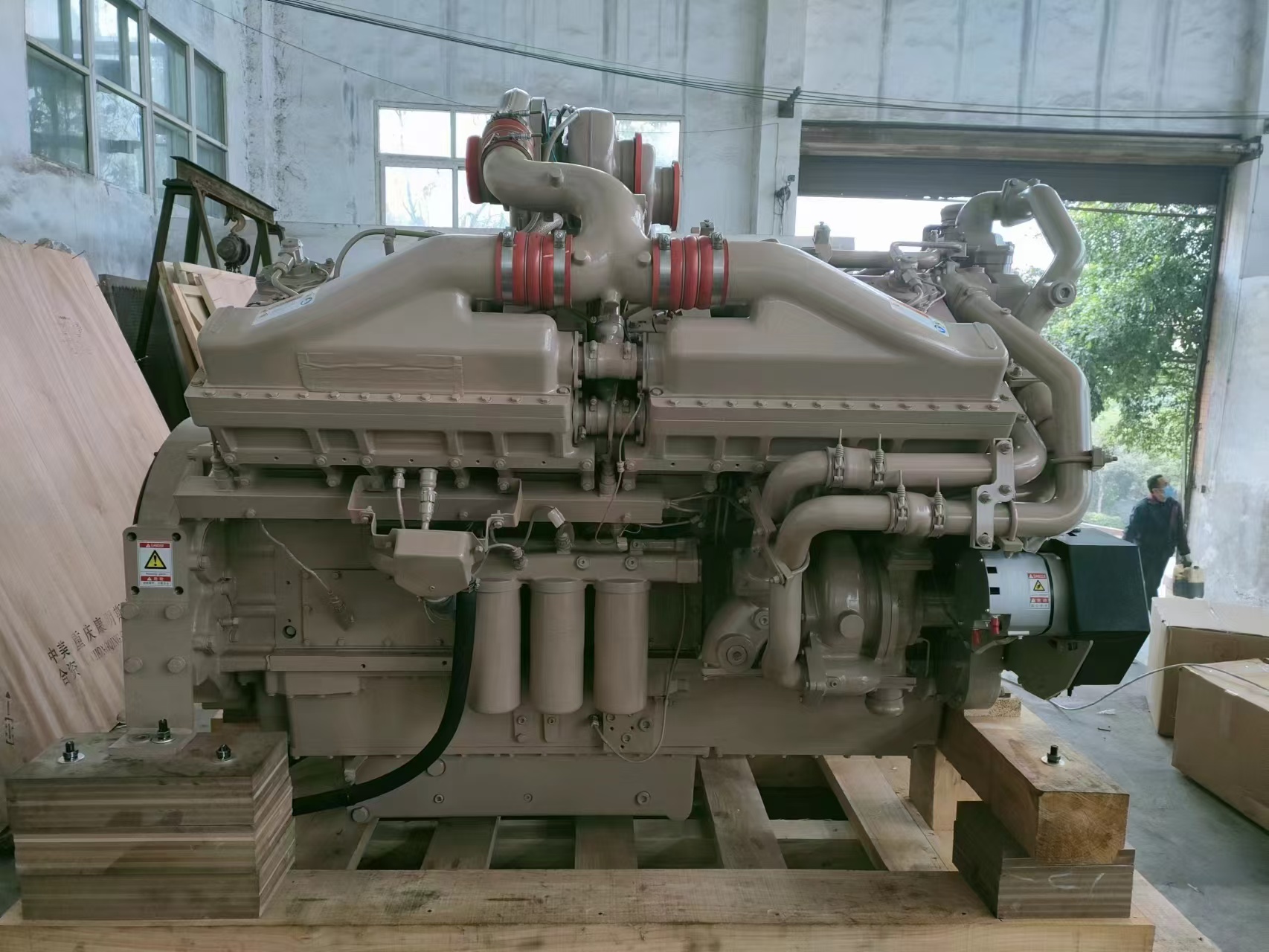

QSK38
Engine Type: 12Cylinders
Displacement:38 L
Bore xStrock:159mm*159 mm
Rated Power: 1085 HP to 1600 HP
Peak Torque: 4869 to 6242 N.m.

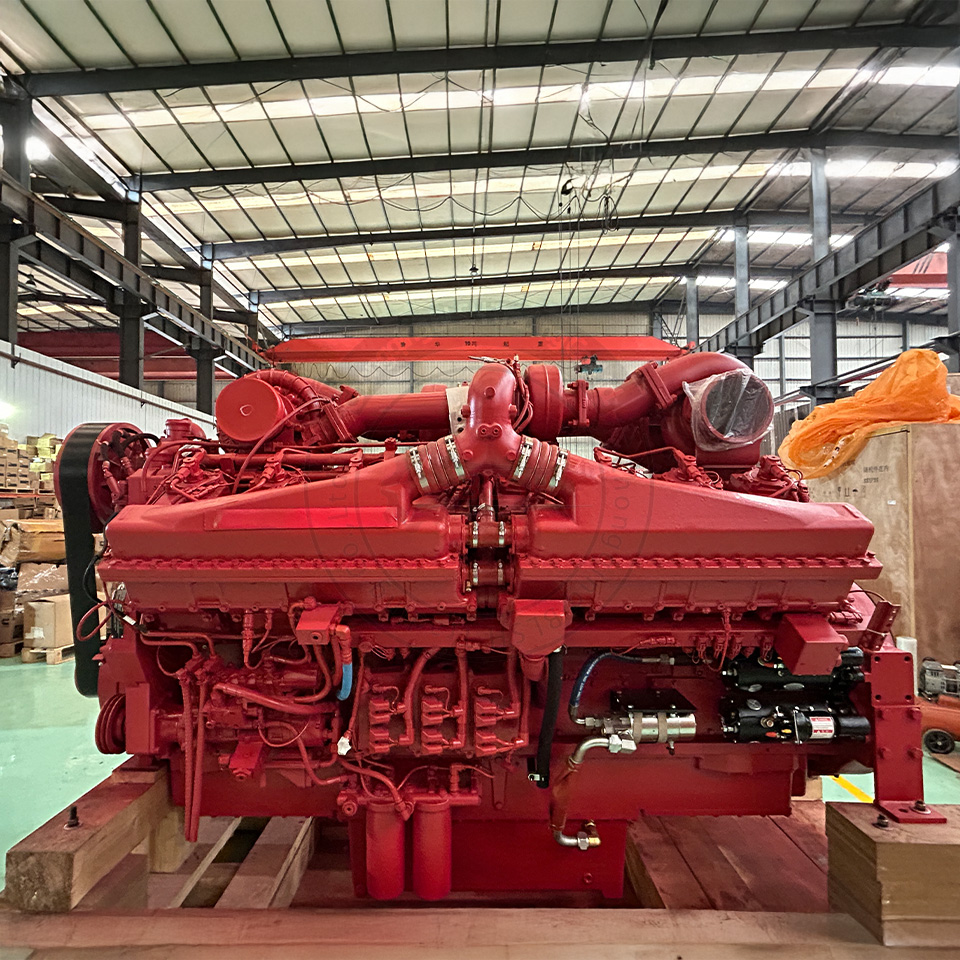

QSK50
Engine Type: 16Cylinders
Displacement:50 L
Bore xStrock:159mm*159 mm
Rated Power: 1400 HP to 2500 HP
Peak Torque: 6379 to 9601 N.m.

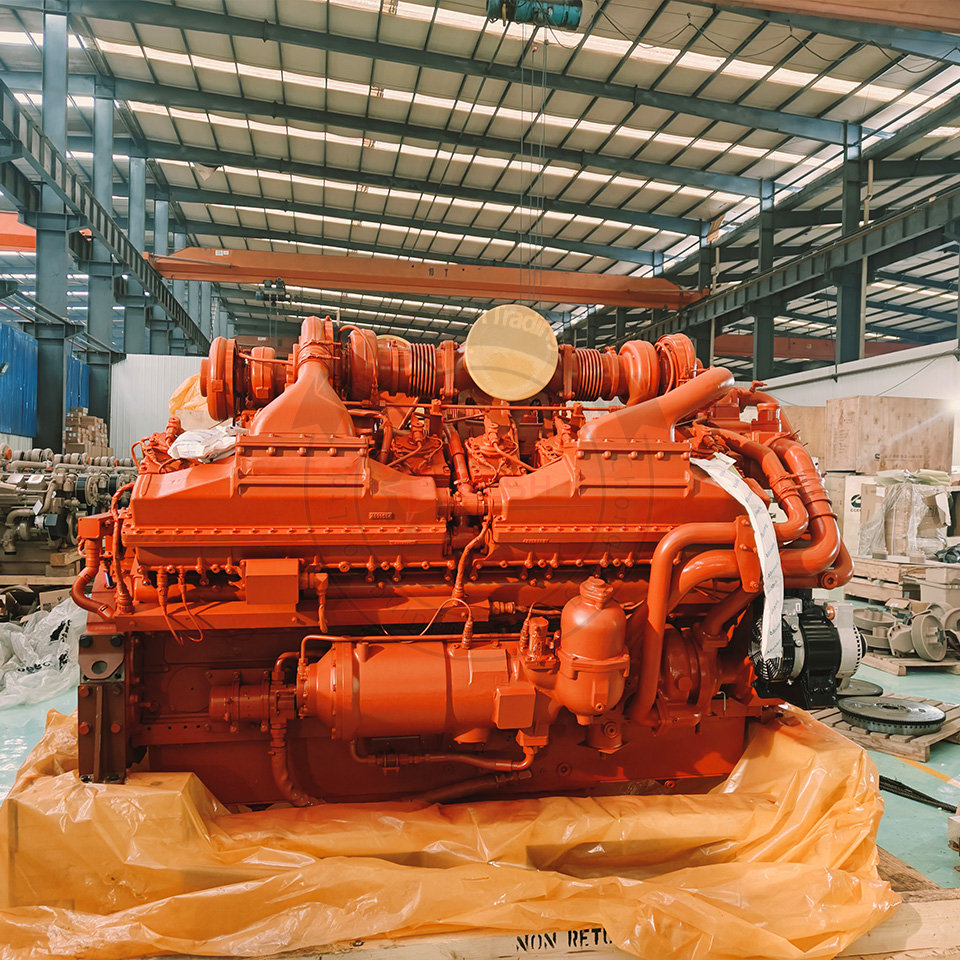

QSK60
Engine Type: 16Cylinders
Displacement:60 L
Bore xStrock:159mm * 190mm
Rated Power: 1600 to 3000 HP
Peak Torque: 8849 to 11257 N.m.

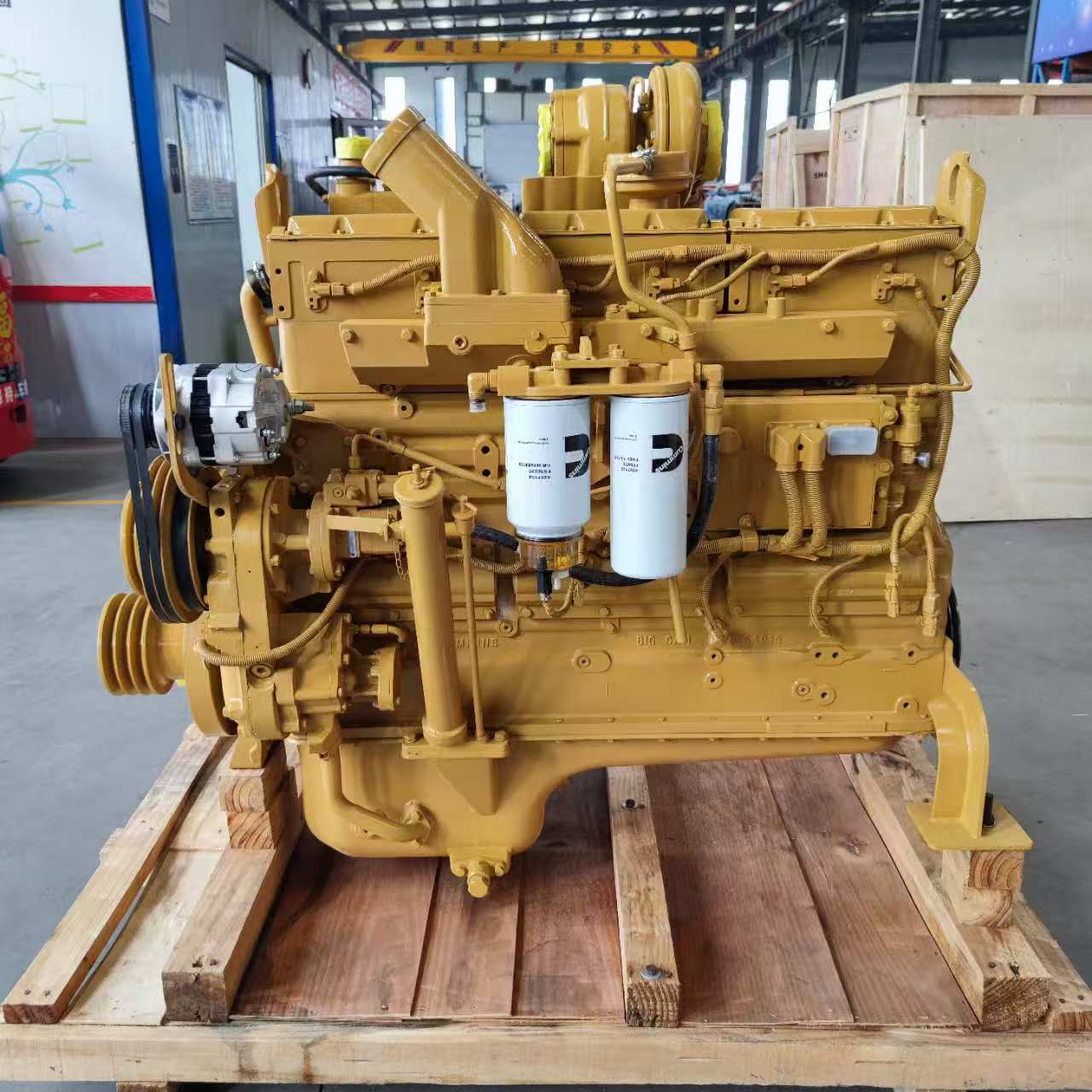

QSNT
Engine Type: 6Cylinders
Displacement:14 L
Bore xStrock:140mm*152 mm
Rated Power: 360 HP 500 HP
Peak Torque: 1464 – 2100 N.m

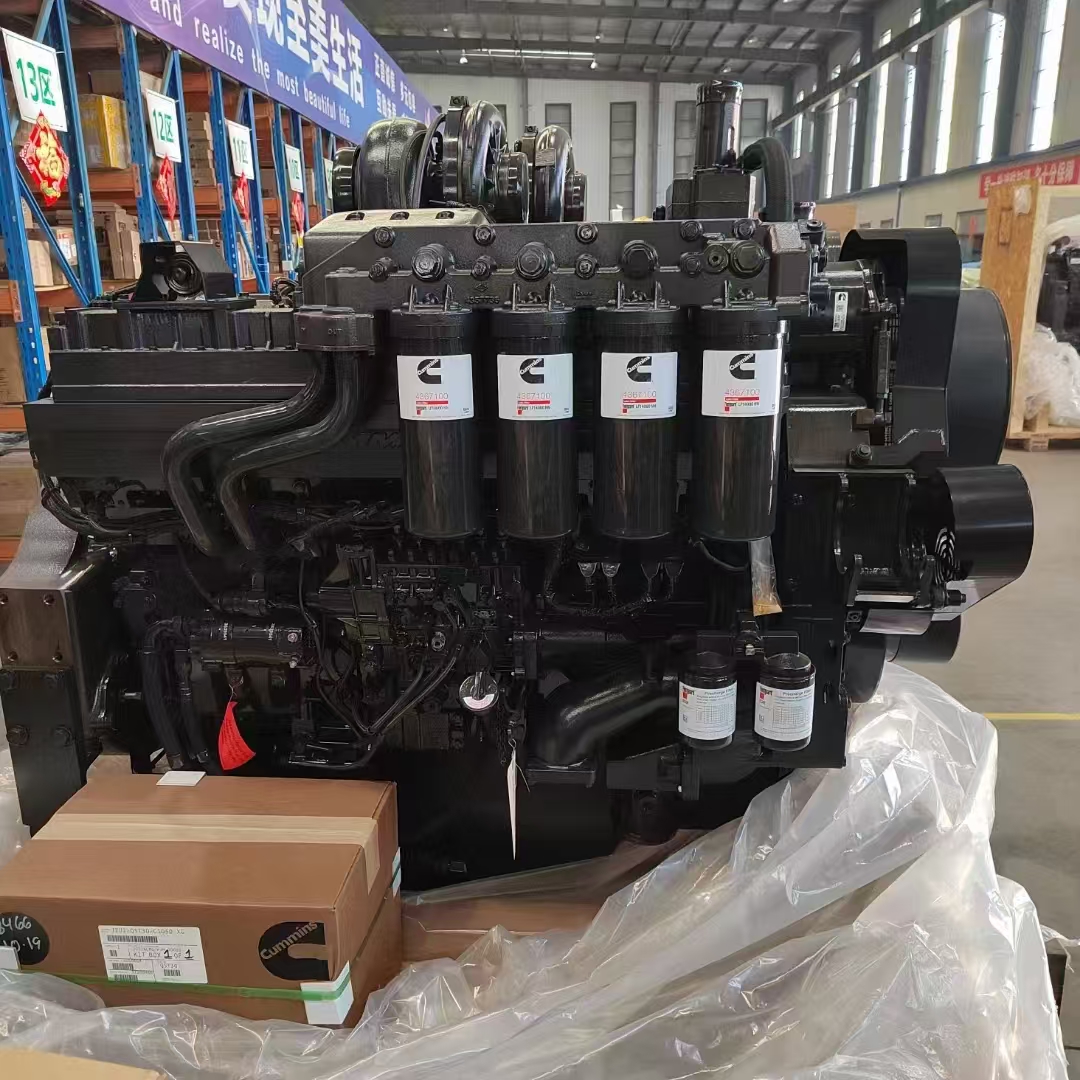

QST30
Engine Type: 12Cylinders
Displacement:30 L
Bore xStrock:140mm*165 mm
Rated Power: 1050 HP to 1200 HP
Peak Torque: 4629 – 5082 N.m
Power Range and Engine Platforms
CCEC Cummins engines cover a wide power range designed for heavy-duty industrial applications. Most models deliver power outputs from 185 HP to more than 2500 HP, depending on engine configuration and application requirements.
The main engine series include:
- M11 Series
- NTA855 Series
- KTA19 Series
- KTA38 Series
- KTA50 Series
- QSK Series
These engines feature displacements ranging from approximately 10.8L to 50L, providing flexible power solutions for various types of industrial machinery.
Because these platforms share standardized design concepts, many components are interchangeable, which helps simplify maintenance and reduce operating costs.
Key Advantages of CCEC Cummins Engines
High Reliability
CCEC industrial engines are built using heavy-duty engine technology and durable materials. Therefore, they maintain stable performance even under high load and continuous operation conditions.
Strong Power and Torque Output
These engines deliver high torque reserves, which makes them suitable for heavy equipment that requires strong pulling power and stable output.
Fuel Efficiency
Cummins combustion technology optimizes fuel injection and airflow management. Consequently, operators can achieve better fuel economy while maintaining high productivity.
Durable Design
The engines feature robust cylinder blocks, reinforced crankshafts, and efficient cooling systems. This design helps extend engine service life and reduce maintenance frequency.
Typical Industrial Applications
CCEC Cummins engines are widely used in various industrial sectors. Their durability and high power output make them ideal for heavy-duty operations.
Construction Machinery
Industrial equipment such as excavators, bulldozers, wheel loaders, and cranes rely on Cummins engines for reliable power in demanding job sites.
Mining Equipment
Mining trucks, drilling equipment, and crushing machinery require high torque and continuous operation capability, which CCEC engines provide.
Oil and Gas Equipment
In addition, these engines power marine propulsion systems and high-capacity water pumps used in infrastructure and irrigation projects.
Many oilfield pumps and drilling systems use CCEC engines to deliver stable mechanical power in remote environments.
Power Generation Systems
CCEC engines are commonly installed in industrial generator sets for standby or prime power generation.
Marine and Pump Drives
CCEC engines currently serve industries including construction, mining, rail transportation, marine vessels, and power generation systems.
Popular CCEC Cummins Industrial Engine Models
Some of the most widely used industrial engine models include:
- M11 Industrial Engine
- NTA855 Industrial Engine
- KTA19 Industrial Engine
- KTA38 Industrial Engine
- KTA50 Industrial Engine
For example, the KTA50 industrial engine is a heavy-duty 16-cylinder diesel engine with a displacement of approximately 50.3 liters and a rated power up to 2250 HP, making it suitable for mining equipment and large generator systems.
Why Choose BLSH Diesel
BLSH Diesel provides professional supply solutions for Cummins and CCEC diesel engines.
Our advantages include:
- Wide coverage of Cummins industrial engine models
- Genuine and high-quality aftermarket spare parts
- Stable international logistics and fast delivery
- Competitive pricing for global buyers
- Professional technical support
By combining product availability with industry expertise, BLSH Diesel helps customers reduce equipment downtime and maintain efficient operations.
FAQ – CCEC Cummins Industrial Engines
What does CCEC stand for?
CCEC stands for Chongqing Cummins Engine Company, a joint venture established to manufacture heavy-duty Cummins diesel engines in China.
What industries use CCEC Cummins engines?
These engines are commonly used in construction equipment, mining machinery, generator sets, marine vessels, and oilfield equipment.
What is the typical power range of CCEC industrial engines?
Depending on the model, CCEC industrial engines typically range from 185 HP to more than 2500 HP.
