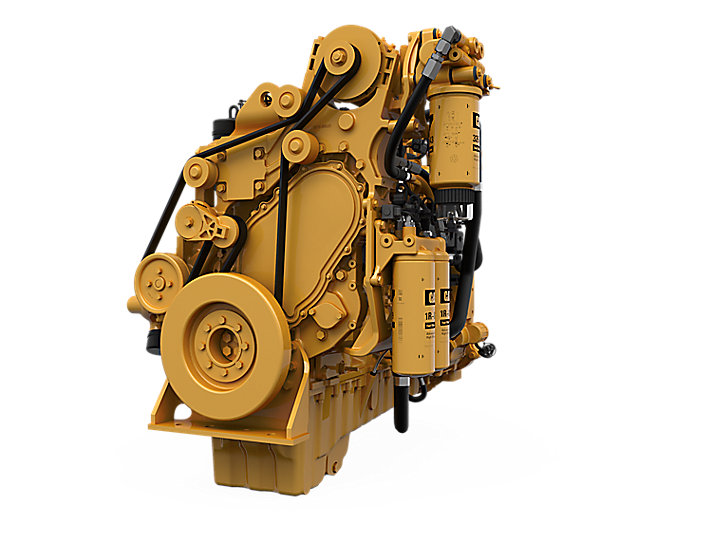

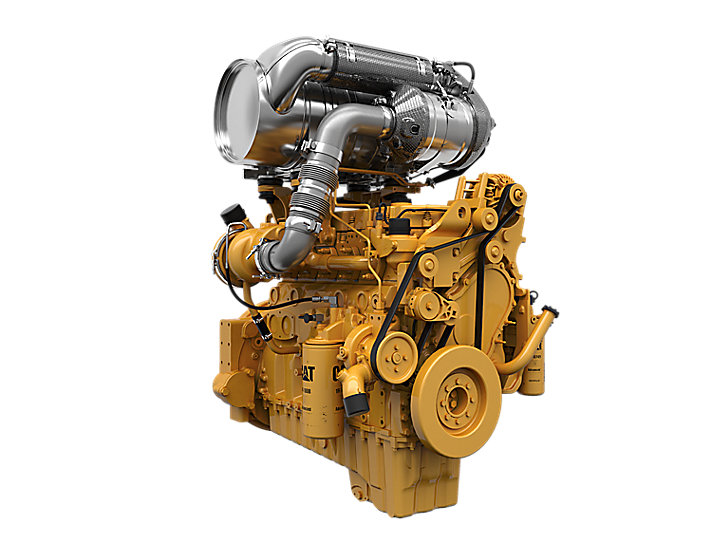

Caterpillar C9.3B industrial diesel engine
| Engine Type: | 6 – Cylinder; In – line; 4 – Cycle |
| Displacement: | 9.3l |
| Aspiration: | Turbocharged and Aftercooled (TA) |
| Bore: | 115 mm |
| Stroke: | 149 mm |
| Combustion System: | Direct Injection |
| Compression Ratio: | 17.0:1 |
| Rotation (Viewed from Flywheel): | Counterclockwise |
Caterpillar
Caterpillar C9.3B industrial diesel engine application scenarios
Industrial, agricultural and construction applications such as: Pumps • Compressors • Crushers • Grinders • Asphalt paving equipment • Hydraulic power units • Drills • Drilling rigs • Bulldozers
| Engine Model | power | Maximum torque |
| C9.3B 340 kW | 162 kW | 900 Nm @ 1400 rpm |
| C9.3B 310 kW | 205 kW | 1257 Nm @ 1400 rpm |
| C9.3B China NR4 | 205 KW | 1257 Nm @ 1400 rpm |
