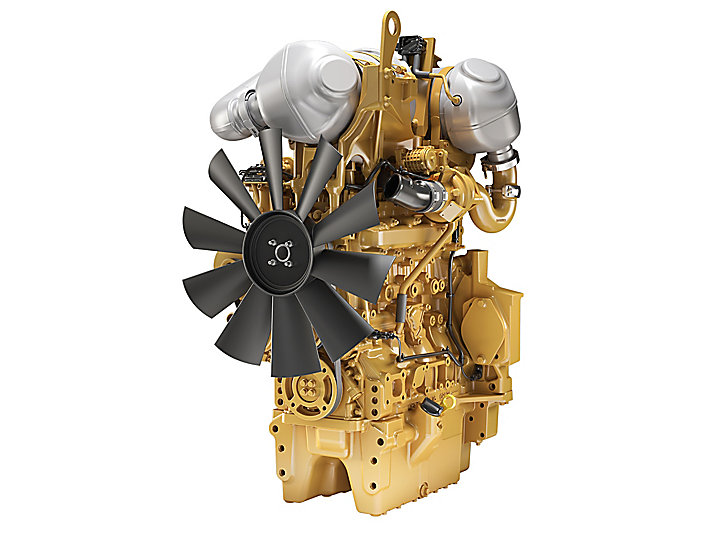

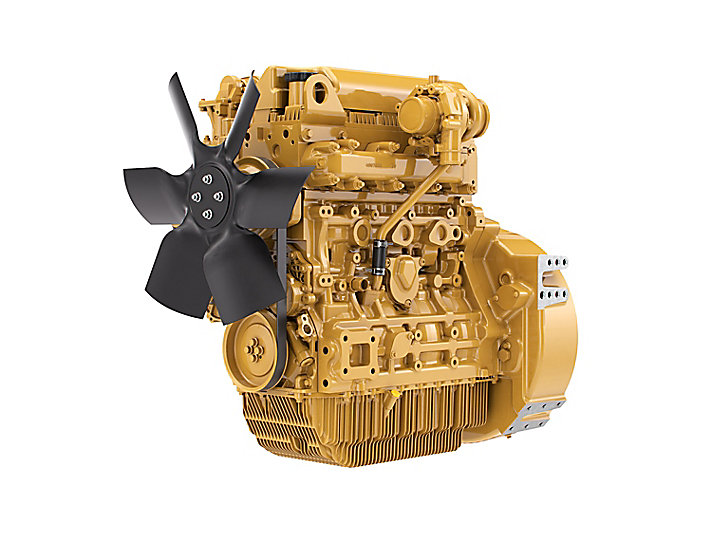

Caterpillar C3.6 industrial diesel engine
| Engine Type: | 4 – Cylinder; In – line; 4 – Cycle |
| Displacement: | 3.6 L |
| Aspiration: | Turbocharged and Aftercooled (TA) |
| Bore: | 98 mm |
| Stroke: | 120 mm |
| Combustion System: | Direct Injection |
| Compression Ratio: | 17.0:1 |
| Total Lubricating Oil Capacity: | 11.6 L |
| Rotation (Viewed from Flywheel): | Counterclockwise |
Caterpillar
Caterpillar C3.6 industrial diesel engine application scenarios
The Cat C3.6 industrial diesel engine offers an excellent balance of compact size, reliability, and performance. The C3.6 meets the needs of many industries and applications, including agricultural tractors, aircraft ground support, drilling/well drilling, crushers and grinders, compactors/rollers, compressors, forestry, irrigation equipment, material handling, mining, earthmoving equipment, paving equipment, pumps, fruit picking equipment, turf maintenance machinery, and underground mining equipment.
| Engine Model | power | Maximum torque |
| C3.6 China NR4 | 82 kW | 450 Nm @ 1500 rpm |
| C3.6 90 kW for tractors | 90 kW | 500 Nm @ 1500 rpm |
| C3.6 90 kW | 90 kW | 500 Nm @ 1500 rpm |
| C3.6 100 kW for tractors | 100 kW | 530 Nm @ 1500 rpm |
| C3.6 106 kW | 106 kW | 566 Nm @ 1500 rpm |
