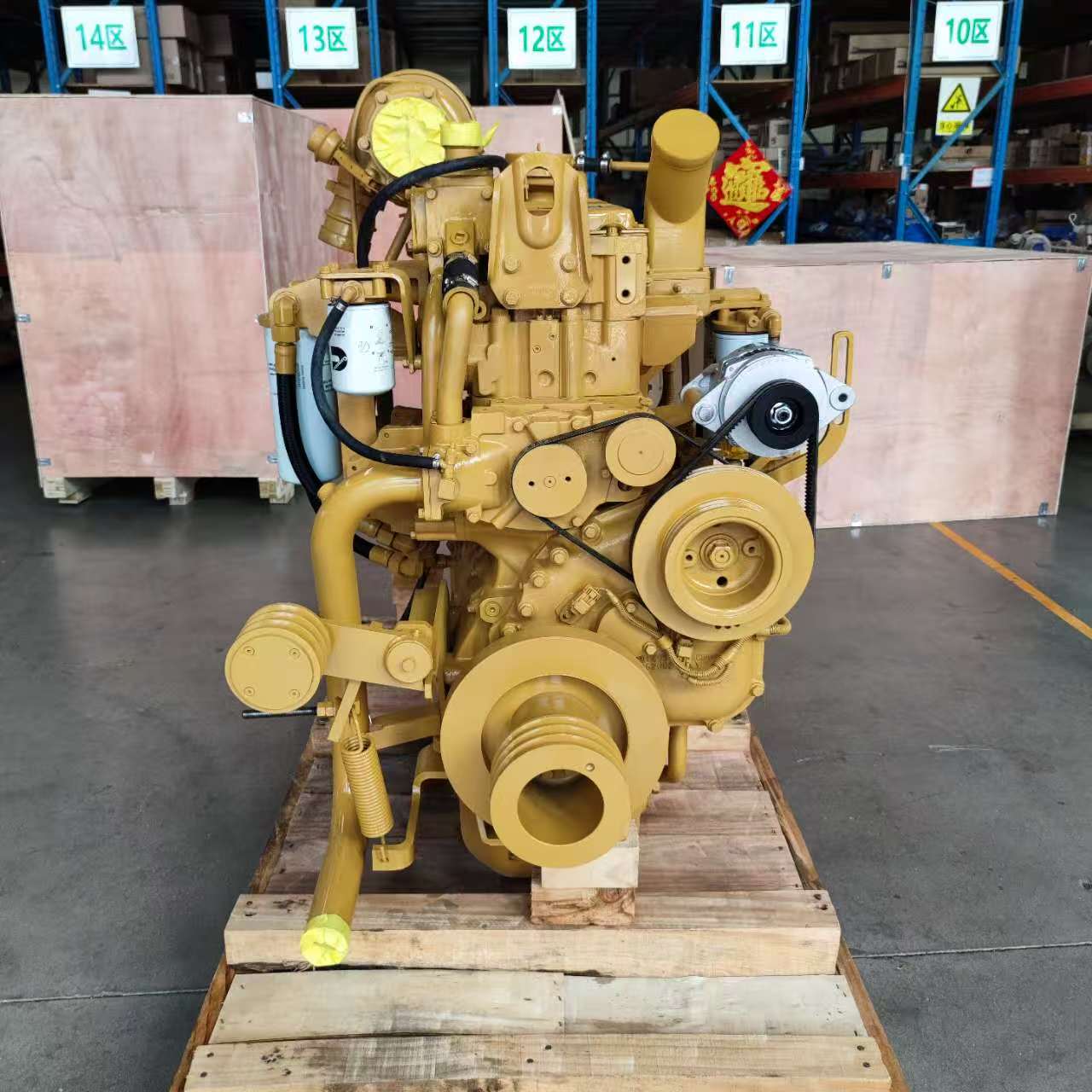

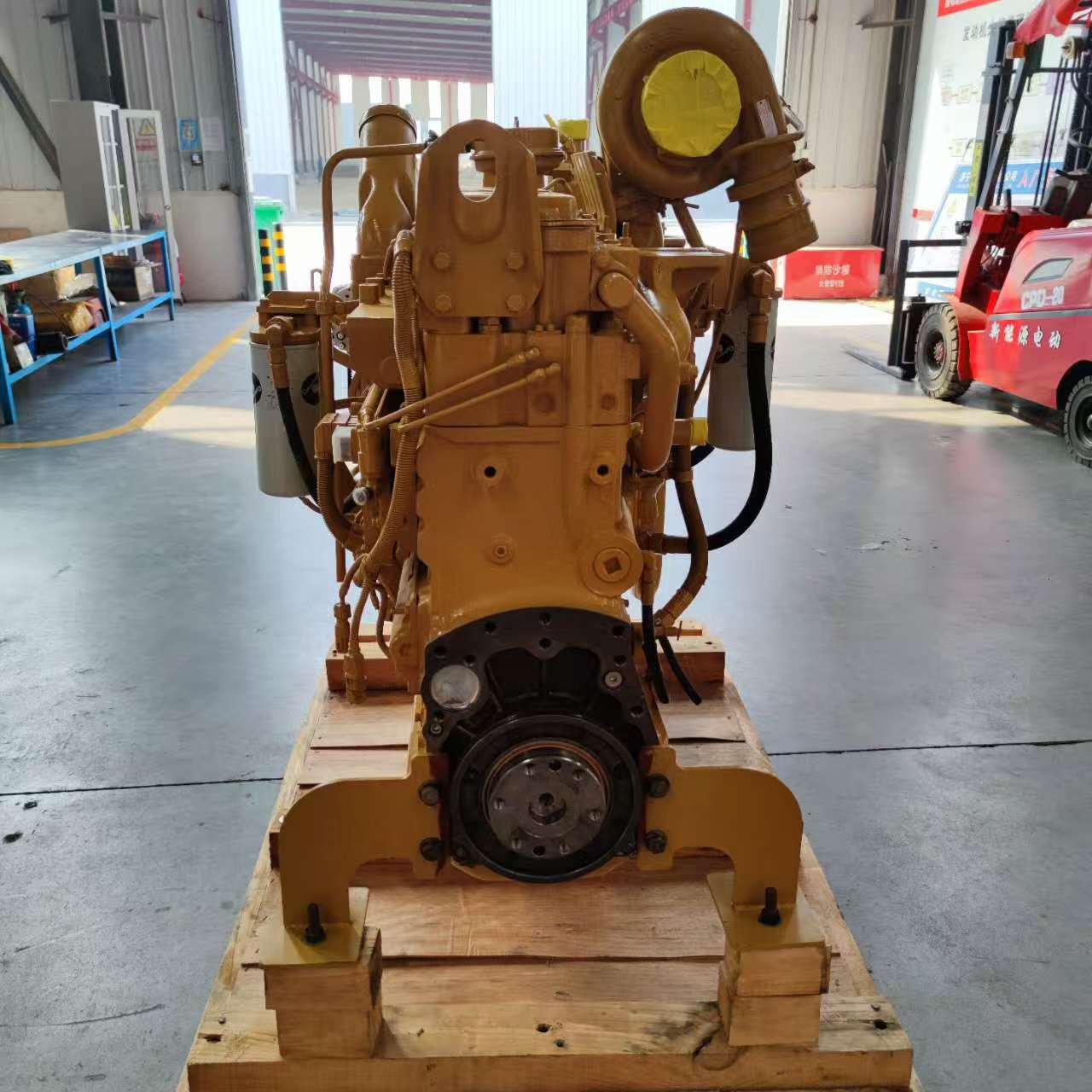

QSNT Generator Engines Basic information
| Engine Type: | 6-Cylinder; In-line; 4-Cycle |
| Displacement: | 14 L |
| Rated Speed: | 1500 – 1800 RPM |
| Prime: | 1392 – 448 kW @ 1500 – 1800 RPM |
| Peak Torque: | 358 – 545 kW @ 1500 – 1800 RPM |
| Bore * Stroke: | 140 mm * 152 mm |
| Dry Weight: | 1460 kg |
| Packing Size (L * W * H): | 1534 mm * 781 mm * 1355 mm |
CCEC QSKNT Generator Engines Basic information
Features & Benefits Overview
The CCEC QSNT Series Generator Drive Engine offers a reliable and versatile power solution. Here’s a concise breakdown of its key features:
Engine Specifications
Configuration: 12-cylinder inline
Displacement: 14 liters
Engine Type: Four-stroke
Bore: 140 mm (5.5 in)
Stroke: 152 mm (6.0 in)
Fuel System: PT Fuel System
Turbocharging: Turbocharged with charge air cooling
Emission Standard: EURO II post-processor
Power Output
50 Hz Generator Sets (1500 RPM): Prime Power Range: 358 kW to 407 kW
60 Hz Generator Sets (1800 RPM): Prime Power Range: 358 kW to 669 kW
Engine Configurations
T: Turbocharged engine
TA: Turbocharged with water-air intercooler
TAA: Turbocharged with air-air intercooler
Service and Support
CCEC offers full lifecycle services, including:
Design and Power System Supply
Installation and Commissioning
After-Sales Service Training
Spare Parts Supply
Troubleshooting and Overhaul Support
Applications
Perfect for:
Prime and Standby Power Generation
Industrial and Commercial Use
Key Features
High Power Output: Up to 669 kW for 60 Hz.
Efficient Turbocharging: Boosts performance and fuel efficiency.
Emission Compliance: Meets EURO II standards.
Durable Design: Built for long-lasting performance.
Conclusion
The CCEC QSNT Series delivers powerful, efficient performance with robust service support, making it an excellent choice for diverse power generation needs.
