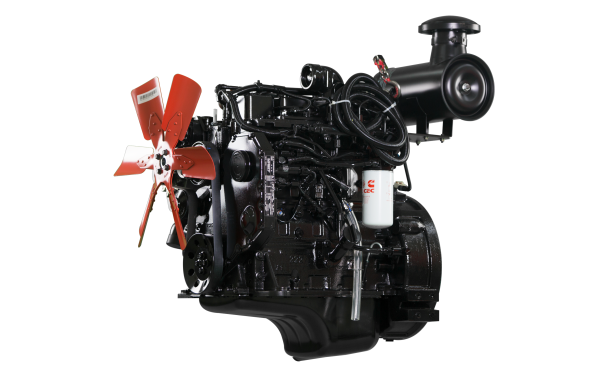

QSB3.9 Generator Engines Basic information
| Engine Type: | 4 – Cylinder; In – line; 4 – Cycle |
| Displacement: | 3.9 L |
| Rated Speed: | 1500 – 1800 RPM |
| Governed(kW@RPM): | 25 kW to 84 kW@1500 – 1800 RPM |
| Standby Power(kW@RPM): | 27 kW to 88 kW@1500 – 1800 RPM |
| Bore * Stroke: | 102 mm*120 mm |
| Packing Size (L * W * H): | 1110mm * 910mm * 1350mm |
| Dry Weight: | 500-600kg |
DCEC QSB3.9 Generator Engines Detailed information
The Dongfeng Cummins Joint Venture Plant (DCEC), established in 1986, is a partnership between Dongfeng and Cummins USA. The plant produces engines using Cummins’ technology for heavy-duty applications.
The Cummins QSB3.9-G engine stands out for its versatility and reliability. It is commonly used in:
Heavy trucks
Excavators
Road rollers
Bulldozers
Cranes
Water pumps
Engine power packs
Key Features of the Cummins QSB3.9-G:
Fuel Efficiency: Optimizes fuel use for cost-effective operation.
Integrated Design: Uses advanced engineering for smooth performance.
High-Quality Build: Built to rigorous standards for long-lasting reliability.
Holset Wastegate: Boosts turbocharger efficiency and engine performance.
High-Pressure Fuel Pump: Delivers precise fuel injection for better combustion.
Durable Cylinder Liner: Reduces friction, improving durability.
Proven Reliability: Performs well under demanding conditions.
The Cummins QSB3.9-G engine reflects Cummins’ focus on innovation, efficiency, and durability, making it a reliable choice for industries requiring robust power.
QSB3.9 Generator Engines Details
| Engine Model | Governed(kW@RPM) | Standby Power(kW@RPM) |
| QSB3.9-G2 | 84@1500 | 92@1500 |
| QSB3.9-G3 | 58@1500 | 64@1500 |
| QSB3.9-G31 | 36@1500 | 40@1500 |
| QSB3.9-G33 | 25@1500 | 27@1500 |
| QSB3.9-G35 | 79@1500 | 88@1500 |
| QSB3.9-G37 | 63@1500 | 70@1500 |
