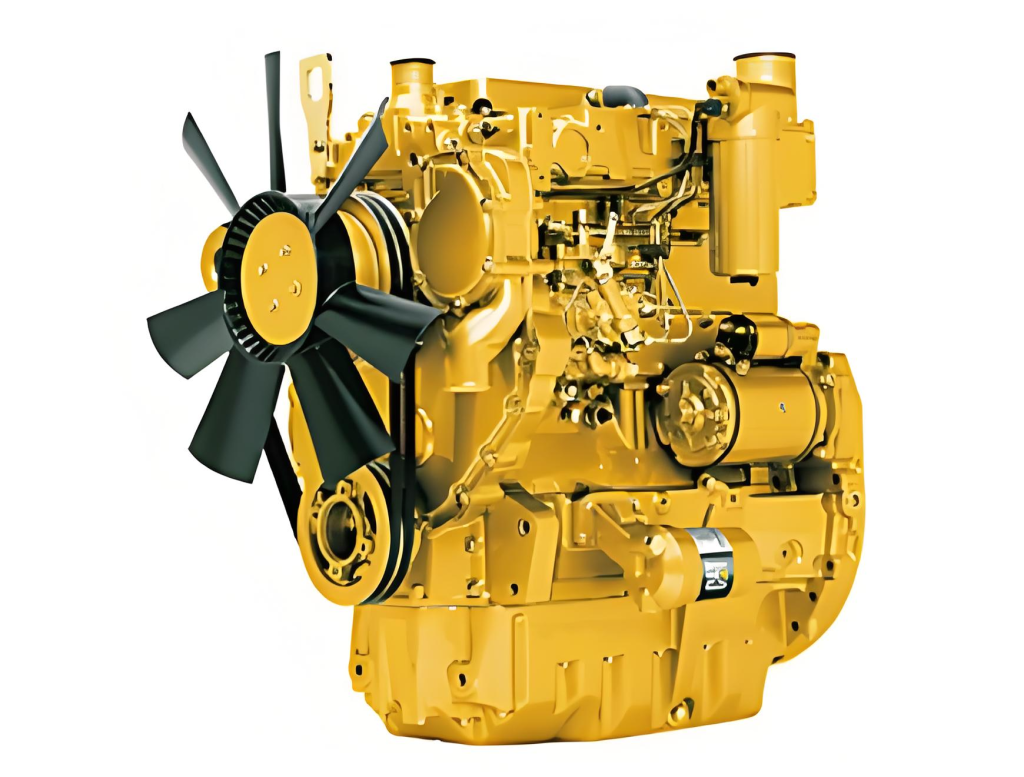

Caterpillar 3054C Diesel Engine
| Engine Model | 3054C |
| Maximum power: | 97 KW |
| Peak Torque: | 500 Nm @ 1400 rpm |
| Type | 4 Cylinders, in Line |
| Rated speed | 2200 rpm |
| Minimum power | 52 kW |
| Emissions | U.S. EPA and CARB Tier 4 Final, EU Stage V |
| Bore * Stroke | 105 mm * 127 mm |
| Packing Size (L * W * H) | 663 mm * 620 mm * 810 mm |
| Lead Time: | 5-15 Working Days |
General Infomation of 3054C Diesel Engine
| General Infomation of 3054C Diesel Engine | |
| Engine Model | 3054C |
| Maximum Power | 97 KW |
| Maximum Torque | 1268 Nm @ 1400 rpm |
| Rated Speed | 2200 rpm |
| Minimum Power | 52 kW |
| Emissions | U.S. EPA and CARB Tier 4 Final, EU Stage V |
| Engine Configuration | Inline 6-cylinder |
| Bore | 105 mm |
| Stroke | 127 mm |
| Displacement | 4.4 L |
| Compression Ratio | 16.2:1 |
| Intake Method | Naturally aspirated (NA), turbocharged (T), or turbocharged and aftercooled (TA) |
| Combustion System | Direct Injection |
| Rotation (from Flywheel End) | Counterclockwise |
| Aftertreatment Devices | DOC+DPF or DOC+DPF+SCR |
| Length | 663 mm |
| Width | 620 mm |
| Height | 810 mm |
| Dry weight – basic operating engine, without optional accessories | 306 kg |
3054C Diesel Engine Standard Equipment
3054C Standard Equipment
Intake System
Intake manifold with optional inlet.
Control System
Alternator
Starter Motor
Control Panel
Starting Aid with Glow Plugs
Cooling System
108°C (226°F) top tank temperature is standard, minimizing cooling package size.
50:50 water/glycol mixture
Flywheel and housing
SAE No. 3 flywheel housing
Flywheel and starter ring gear
Fuel System
Fuel Filter Location
Lubrication System
Lubricating Oil Filter and Breather
Oil Filter Location
Lubricating Oil Sump
Power Take-Off (PTO)
SAE B Power Take-Off (PTO)
General
Timing Case and Gear Drive Accessories
Belt Drive Accessories
Engine Mounts
Instruments
Display
Power and Torque Curve Customization
Paint: Caterpillar Yellow, optional colors available upon request
