BFCEC X-Series Cummins

105HP-552HP

The X-Series: Versatility Meets Power
From tractors and dump trucks to specialized vehicles, the X-Series (X11–X15, X12N Gas) dominates every terrain. We’ve engineered these engines to excel in two key sectors:
Efficient Logistics: Delivering precision and reliability for cold chain, hazardous chemicals, and express delivery.
Heavy-Duty Construction: Providing unstoppable torque for mining, urban waste, heavy-load transport, and mixer trucks.
Whatever the mission, the X-Series delivers.

EngineNumber of CylindersDisplacementpower(kw)Torque(N•m)Length*width*height(mm)Weight (KG)Emission
X11In-line six-cylinder10.5L205-2501420-18001487*898*1051831Euro 5 / Euro Vl
X12In-line six-cylinder11 .8L265-3751900-23001487*898*1051851Euro 5 / Euro Vl
X13In-line six-cylinder12.9L382-4122400-26001487*898*1051915Euro 5 /Euro Vl
X15In-line six-cylinder14.5L391-4212237 – 27791487*898*10511430Euro 5 /Euro Vl
X11 Engineering EditionIn-line six-cylinder10.5L205-2501420-18001487*898*1051843Euro 5 / Euro Vl
X12 Engineering EditionIn-line six-cylinder11.8L265-3751900-23001487*898*1051885Euro 5 / Euro Vl
X12NIn-line six-cylinder11 .8L250-2791500-17001487*990*1051842Euro 5 / Euro Vl
BFCEC cummins

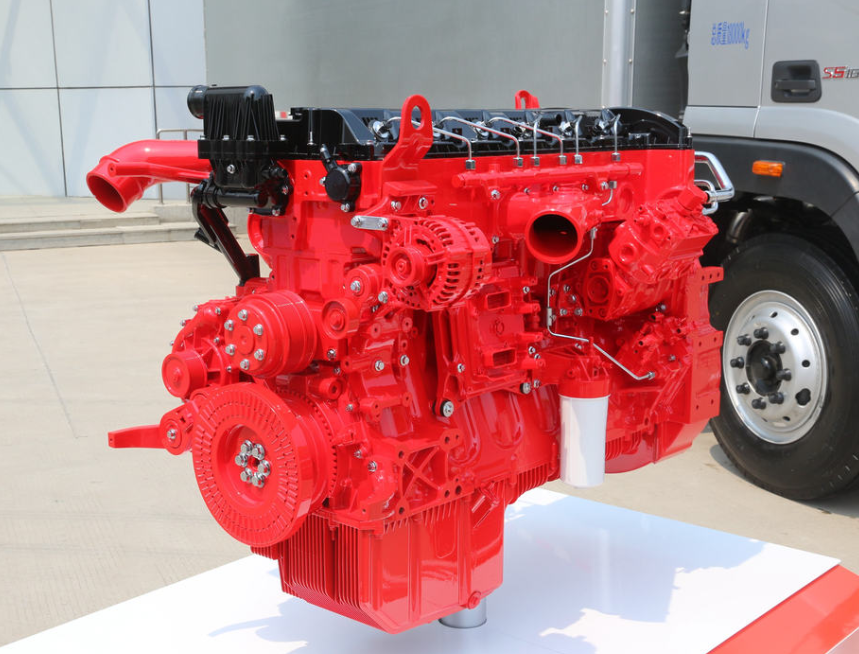

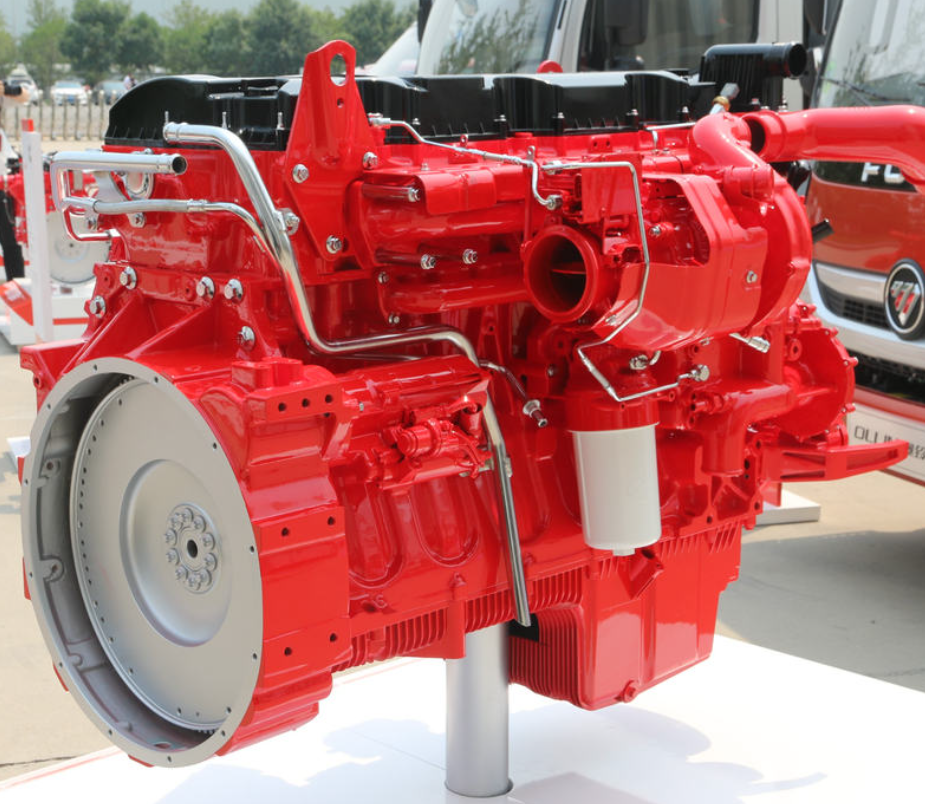

BFCEC X11 Series Series Engines

X-series X11

X11 Series Specification

typeIn-line 4-cylinder
Displacement(L)10.5
Maximum Power (KW)205-250
Maximum Torque (Nm)1420-1800
Dry Weight(Kg)1487
Length (mm)898
Width (mm)1051
Height (mm)831
EngineMaximum Power HPMaximum Torque NmEmission
X11NS6B3603601800N.mEuro Vl
X11NS6B3203201600N.mEuro Vl
X11NS6B4004002000N.mEuro Vl
X11NS6B2902901450N.mEuro Vl
BFCEC cummins

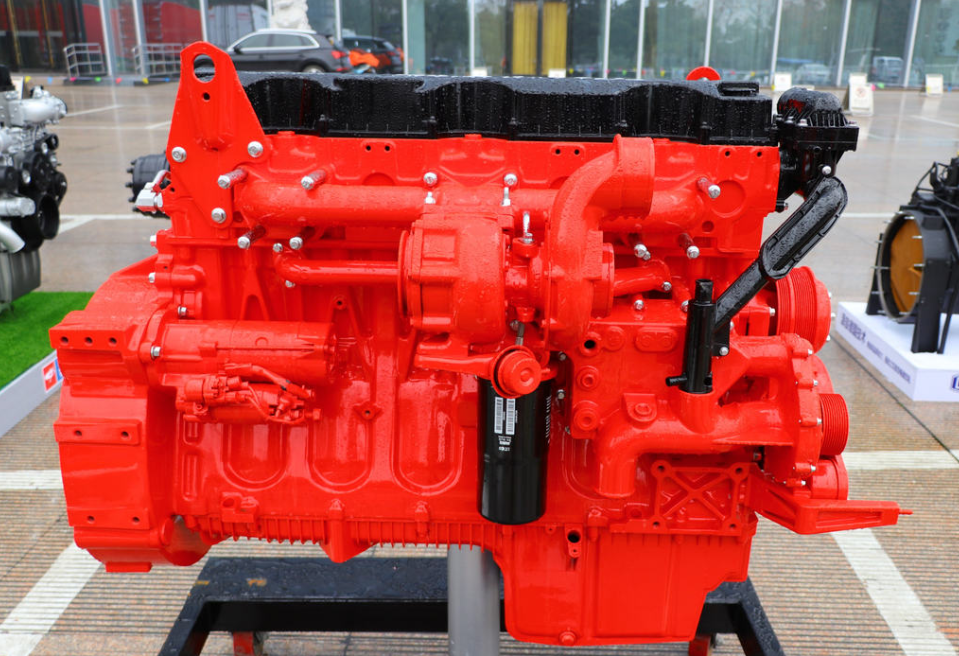

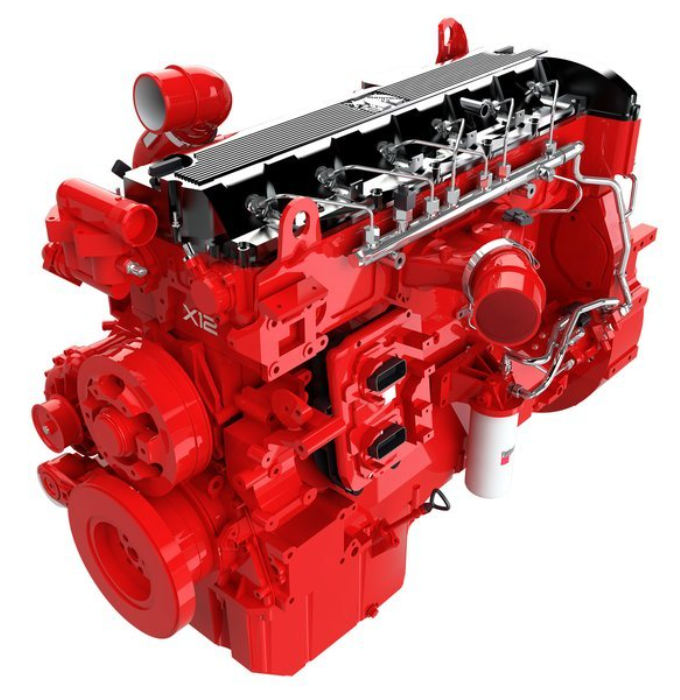

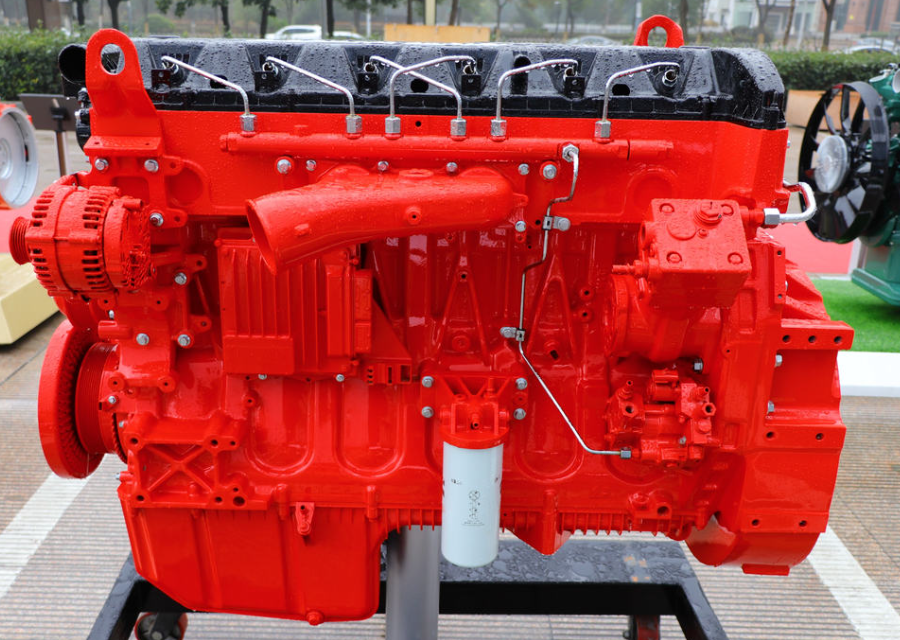

BFCEC X12 Series Engines

X-series 12L

X12 Series Specification

typeIn-line 4-cylinder
Displacement(L)11.8
Maximum Power (KW)265-375
Maximum Torque (Nm)1900-2300
Dry Weight(Kg)1487
Length (mm)898
Width (mm)1051
Height (mm)806
EngineMaximum Power HPMaximum Torque NmEmission
X12NS6B4904902300N.mEuro Vl
X12NS6B4704702300N.mEuro Vl
X12NS6B5205202300N.mEuro Vl
X12NS6B4404402200N.mEuro Vl
X12E5-4604602300N.mEuro V
X12E5-4304302200N.mEuro V
X12NS6B4104102100N.mEuro Vl
X12NS6B3603601900N.mEuro Vl
X12 Engineering Edition5102300N.mEuro V
X12NS6B3803802000N.mEuro Vl
X12E5-4904902300N.mEuro V
X12E5-4004002100N.mEuro V
X12E5-3803802000N.mEuro V
X12E5-3603601900N.mEuro V
X12E5-5105102300N.mEuro V
BFCEC cummins

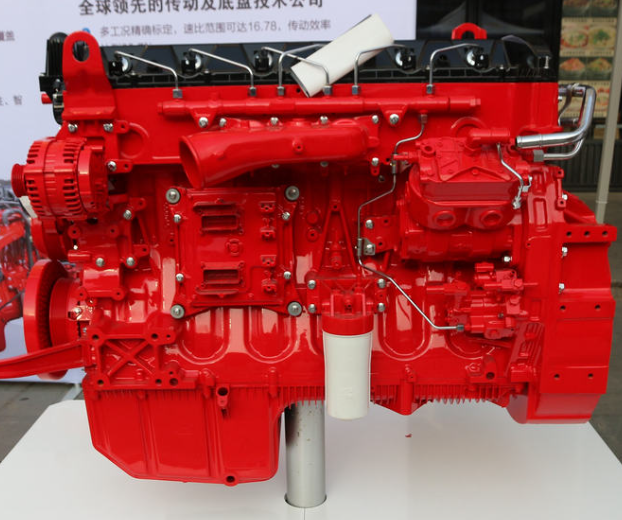

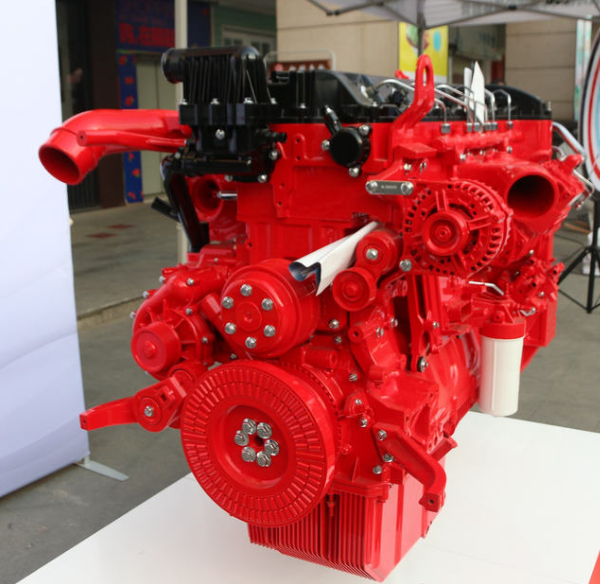

BFCEC X13 Series Engines

X-series 13L

X13 Series Specification

typeIn-line 4-cylinder
Displacement(L)12.9
Maximum Power (KW)265-375
Maximum Torque (Nm)1900-2300
Dry Weight(Kg)851
Length (mm)1487
Width (mm)898
Height (mm)1051
EngineMaximum Power HPMaximum Torque NmEmission
X13NS6B5205202600N.mEuro V
X13NS5-5605602600N.mEuro V
X13NS6B5805802600N.mEuro Vl
X135602600N.mEuro V
X13NS5-5205202600N.mEuro V
X13NS6B5605602600N.mEuro Vl
X13NS6B5405402600N.mEuro Vl
X13NS6B5105102500N.mEuro Vl
X13NS6B4804802400N.mEuro Vl
BFCEC cummins

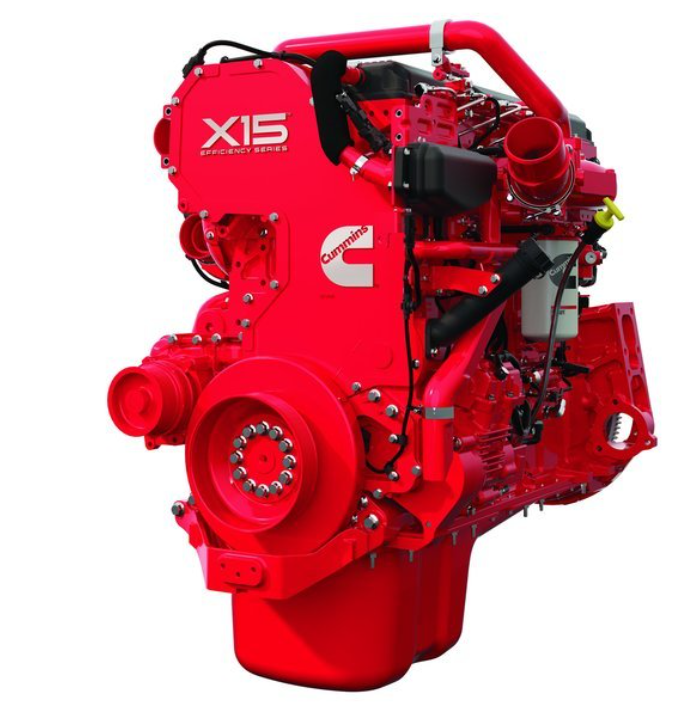

BFCEC X15 Series Engines

X-series 15L

X15 Series Specification

typeIn-line 4-cylinder
Displacement(L)14.5
Maximum Power (KW)391-421
Maximum Torque (Nm)2237-2779
Dry Weight(Kg)1480
Length (mm)1487
Width (mm)898
Height (mm)1051
EngineMaximum Power HPMaximum Torque NmEmission
X15NS6B6606603200N.mEuro Vl
X15NS6B6806803200N.mEuro Vl
X15NS6B6206203200N.mEuro Vl

Engine Overview

Cummins X Series engines are high-performance heavy-duty diesel engines developed by Cummins and manufactured by Beijing Foton Cummins Engine Company (BFCEC). These engines are designed for modern heavy-duty trucks and transportation equipment requiring high torque, fuel efficiency, and long service life.

The Cummins X Series engine family includes X11, X12, X13, and X15 platforms, covering displacement ranges from 10.5 liters to 14.5 liters and delivering power outputs from approximately 280 horsepower to over 680 horsepower.

These engines are widely used in heavy tractor trucks, dump trucks, mixer trucks, and long-distance logistics vehicles.

X-Series Engine Models

Engine ModelDisplacementPower RangeMax Torque
X1110.5L280-400 HP1420-1800 Nm
X1211.8L360-520 HP1900-2300 Nm
X1312.9L480-580 HP2400-2600 Nm
X1514.5L620-680 HPup to 3200 Nm
  • X11 engine provides up to 400 HP and 1800 Nm torque.
  • X12 engine delivers up to 520 HP with 2300 Nm torque.
  • X13 engine can reach 580 HP and 2600 Nm torque.
  • X15 engine provides up to 680 HP and 3200 Nm torque.

Long-Haul Truck Engines

  • X12
  • X13

Features：

  • High fuel efficiency
  • High-Speed ​​Logistics Transport

Heavy-Load Truck Engines

  • X13
  • X15

Features：

  • High Torque Output
  • Suitable for mining transport

Construction Transport Engines

  • X11 engineering edition
  • X12 engineering edition

Features：

  • Suitable for Construction Vehicles
  • Concrete Mixer Truck

Application Scenarios

Long-Distance Logistics

Cummins X Series engines provide reliable power for heavy tractor trucks used in long-distance freight transportation.

Mining Transportation

High torque output makes these engines suitable for mining trucks and heavy-load transport vehicles.

Construction Transportation

Used in dump trucks, mixer trucks, and construction transport equipment.

Specialized Vehicles

Also applied in hazardous chemical transport and cold chain logistics vehicles.

FAQ

What is the Cummins X Series engine?

The Cummins X Series is a heavy-duty diesel engine platform designed for modern truck and logistics transportation applications.

What vehicles use Cummins X Series engines?

These engines are widely used in tractor trucks, dump trucks, mixer trucks, mining trucks, and heavy transport vehicles.

What is the power range of Cummins X Series engines?

Cummins X Series engines typically deliver power outputs from about 280 HP to over 680 HP, depending on the engine model.
